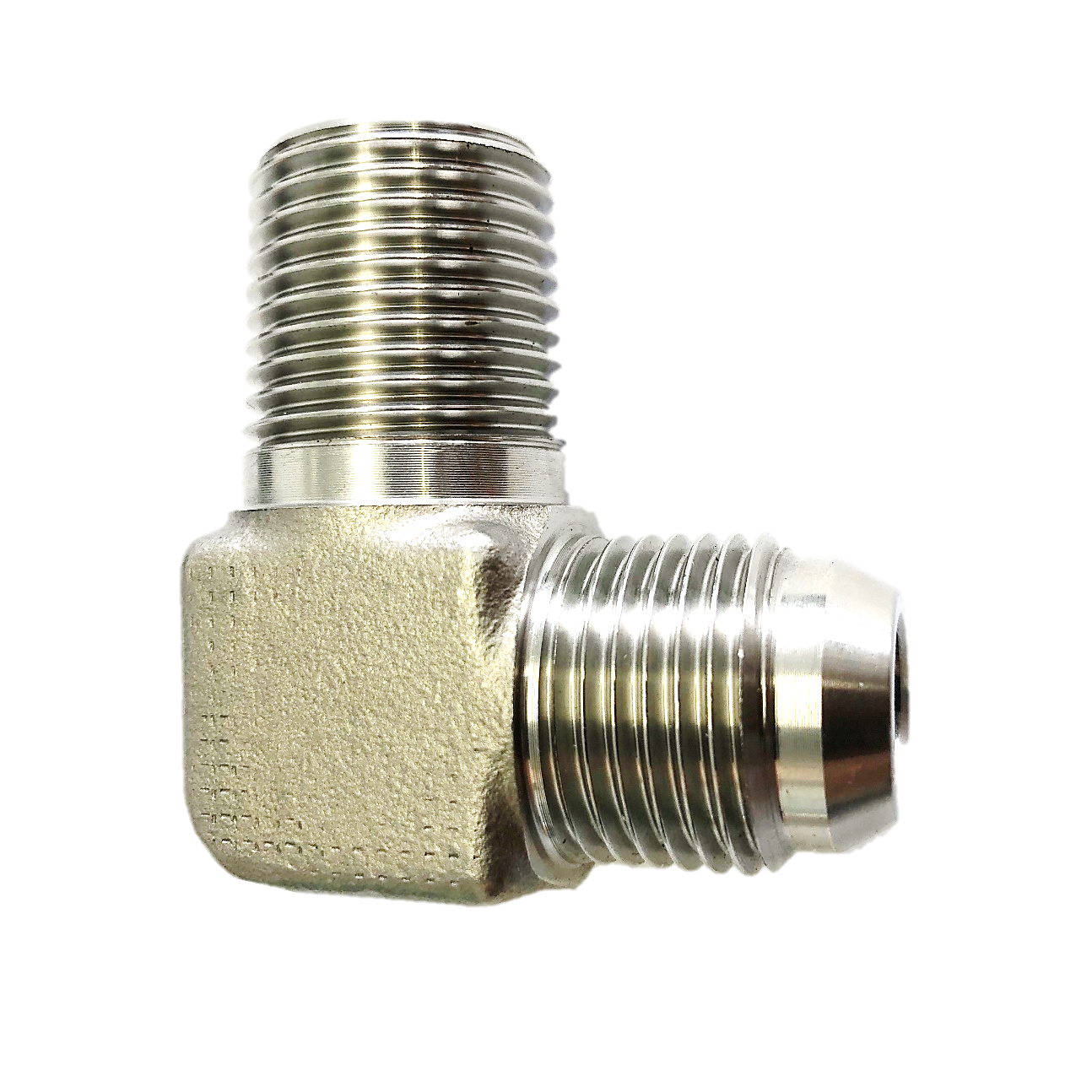

1033
| 呼称 | R | G | A | B | C | F | D | E |
|---|---|---|---|---|---|---|---|---|
| 02 | 1/8 | 1/8 | 20.0 | 13.0 | 21.0 | 14.0 | 4.0 | 14 |
| 04 | 1/4 | 1/4 | 24.0 | 16.0 | 25.0 | 17.0 | 5.5 | 17 |
| 06 | 3/8 | 3/8 | 27.5 | 17.5 | 30.0 | 20.0 | 7.0 | 19 |
| 08 | 1/2 | 1/2 | 32.0 | 20.0 | 36.0 | 24.0 | 10.0 | 24 |
| 12 | 3/4 | 3/4 | 37.0 | 22.0 | 43.0 | 28.0 | 16.0 | 30 |
| 16 | 1 | 1 | 40.5 | 22.5 | 50.0 | 32.0 | 21.5 | 36 |
| 20 | 11/4 | 11/4 | 49.5 | 27.5 | 59.5 | 36.5 | 27.5 | 45 |
| 24 | 11/2 | 11/2 | 52.0 | 27.5 | 63.0 | 39.0 | 33.0 | 50 |
| 32 | 2 | 2 | 64.0 | 32.0 | 74.5 | 41.0 | 44.0 | 63 |

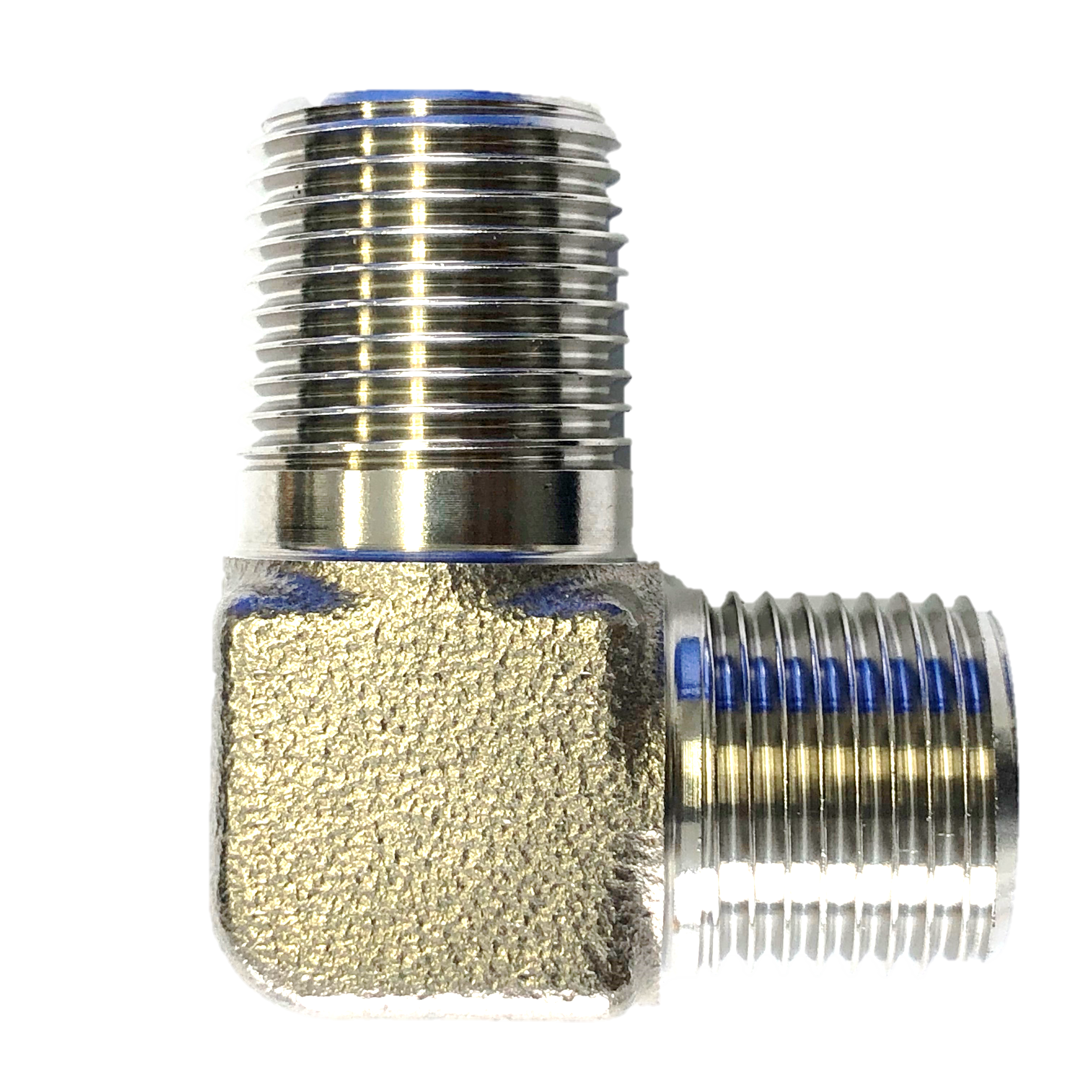

1034
| 呼称 | R | G | A | B | C | F | D | E |
|---|---|---|---|---|---|---|---|---|
| 02 | 1/8 | 1/8 | 18.0 | 11.0 | 21.0 | 14.0 | 4.0 | 14 |
| 04 | 1/4 | 1/4 | 21.0 | 13.0 | 25.0 | 17.0 | 5.5 | 16 |
| 06 | 3/8 | 3/8 | 25.0 | 15.0 | 30.0 | 20.0 | 7.0 | 19 |
| 08 | 1/2 | 1/2 | 30.0 | 18.0 | 36.0 | 24.0 | 10.0 | 24 |
| 12 | 3/4 | 3/4 | 35.0 | 20.0 | 43.0 | 28.0 | 16.0 | 30 |
| 16 | 1 | 1 | 41.0 | 22.0 | 50.0 | 34.0 | 21.5 | 36 |
| 20 | 11/4 | 11/4 | 49.5 | 25.0 | 59.5 | 37.0 | 27.5 | 45 |
| 24 | 11/2 | 11/2 | 52.0 | 25.0 | 63.0 | 39.0 | 33.0 | 50 |
| 32 | 2 | 2 | 64.0 | 32.0 | 74.5 | 41.0 | 44.0 | 63 |

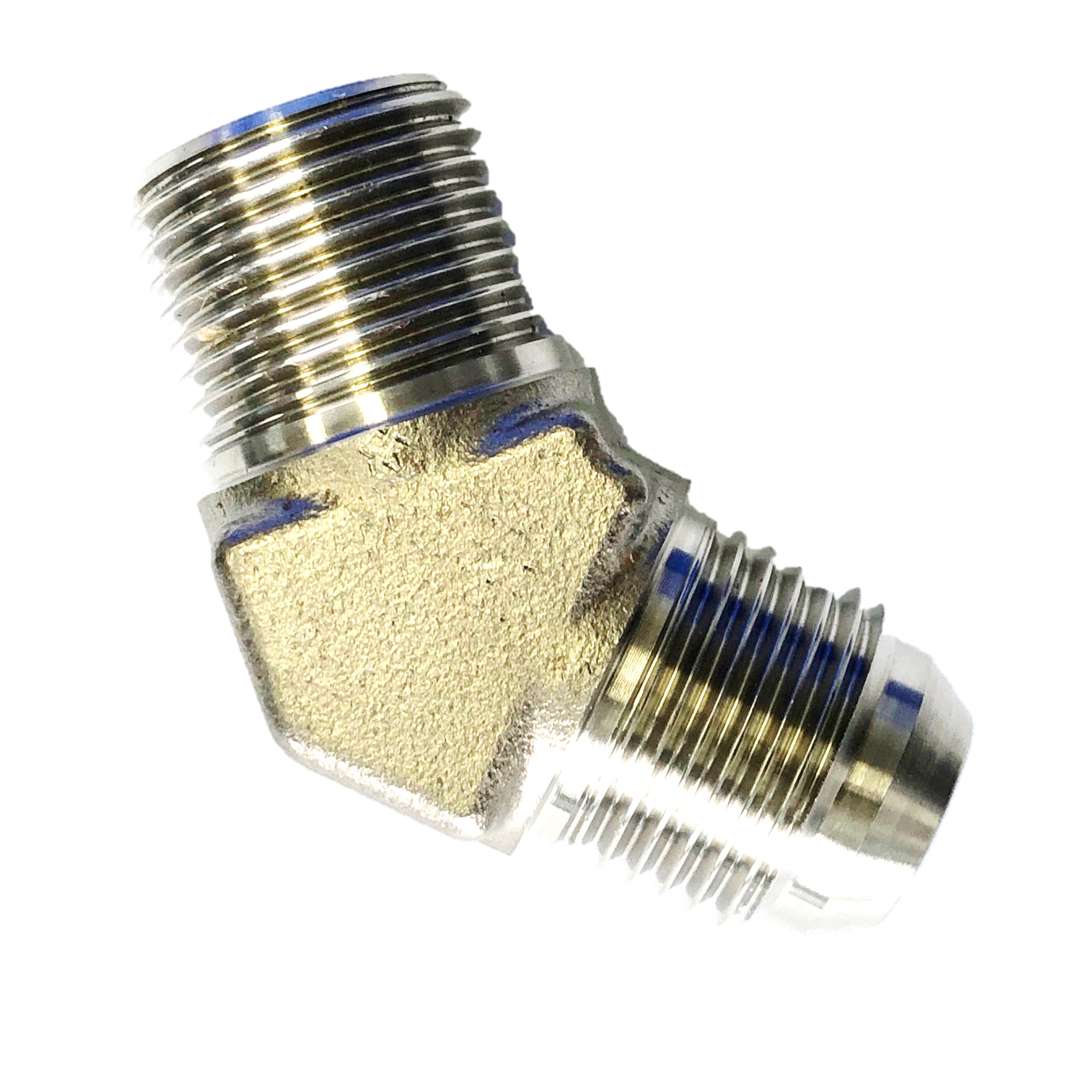

1035
| 呼称 | R | G | A | B | C | F | D | E |
|---|---|---|---|---|---|---|---|---|
| 02 | 1/8 | 1/8 | 19.0 | 13.0 | 19.0 | 12.0 | 4.0 | 14 |
| 04 | 1/4 | 1/4 | 22.0 | 16.0 | 20.0 | 13.0 | 5.5 | 17 |
| 06 | 3/8 | 3/8 | 26.0 | 18.0 | 23.0 | 15.0 | 7.0 | 19 |
| 08 | 1/2 | 1/2 | 29.0 | 20.0 | 28.0 | 18.0 | 10.0 | 24 |
| 12 | 3/4 | 3/4 | 31.5 | 21.5 | 30.0 | 20.0 | 16.0 | 30 |
| 16 | 1 | 1 | 34.0 | 22.5 | 34.0 | 22.0 | 21.5 | 36 |
| 20 | 11/4 | 11/4 | 41.0 | 27.5 | 40.0 | 26.0 | 27.5 | 45 |
| 24 | 11/2 | 11/2 | 44.0 | 28.0 | 41.0 | 26.0 | 33.0 | 50 |
| 32 | 2 | 2 | 51.0 | 32.0 | 51.0 | 32.0 | 44.0 | 63 |

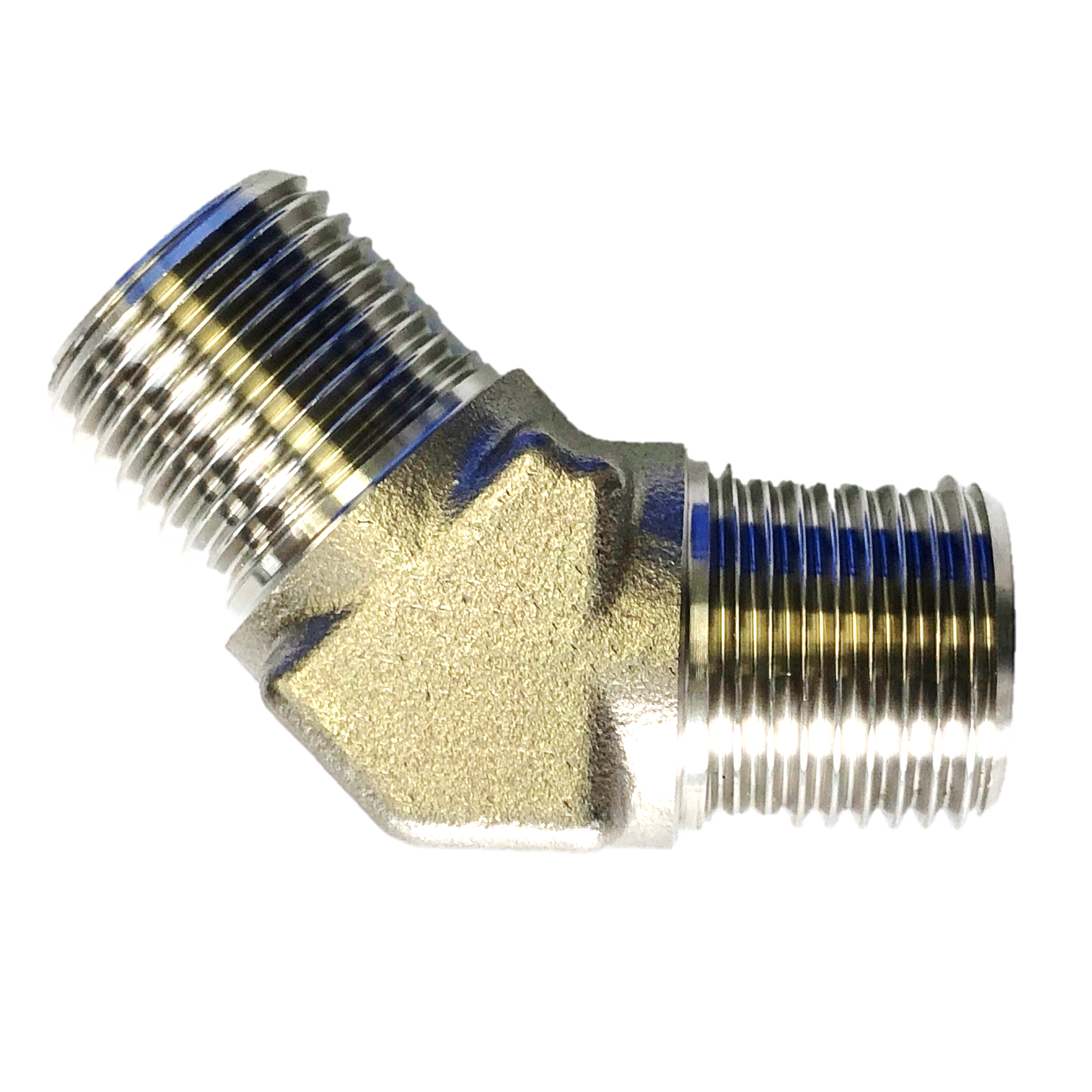

1036
| 呼称 | R | G | A | B | C | F | D | E |
|---|---|---|---|---|---|---|---|---|
| 02 | 1/8 | 1/8 | 17.0 | 11.0 | 18.0 | 12.0 | 4.0 | 14 |
| 04 | 1/4 | 1/4 | 21.0 | 13.0 | 21.0 | 13.0 | 5.5 | 17 |
| 06 | 3/8 | 3/8 | 23.0 | 15.0 | 23.0 | 15.0 | 7.0 | 19 |
| 08 | 1/2 | 1/2 | 28.0 | 18.0 | 29.0 | 18.0 | 10.0 | 24 |
| 12 | 3/4 | 3/4 | 30.0 | 20.0 | 30.0 | 20.0 | 16.0 | 30 |
| 16 | 1 | 1 | 34.0 | 22.0 | 34.0 | 23.0 | 21.5 | 36 |
| 20 | 11/4 | 11/4 | 41.0 | 25.0 | 40.0 | 26.0 | 27.5 | 45 |
| 24 | 11/2 | 11/2 | 44.0 | 25.0 | 41.0 | 26.0 | 33.0 | 50 |
| 32 | 2 | 2 | 51.0 | 32.0 | 51 | 32.0 | 44.0 | 63 |
1033L
| ねじT₁ | ねじT₂ | A | B | C | D | ｄ | H | 重量ｇ |
|---|---|---|---|---|---|---|---|---|
| 1/4G |
R1/4 |
24.0 | 16.0 | 57 | 17 | 5.5 | 16 | 95 |
| 3/8G |
R3/8 |
27.5 | 17.5 | 62 | 20 | 7.0 | 19 | 145 |
| 1/2G | R1/2 | 32.0 | 20.0 | 64 | 24 | 10.0 | 24 | 230 |
| 3/4G | R3/4 | 36.0 | 21.5 | 85 | 28 | 16.0 | 30 | 380 |
1034L
| ねじT₁ | ねじT₂ | A | B | C | D | ｄ | H | 重量ｇ |
|---|---|---|---|---|---|---|---|---|
| 1/4G |
R1/4 |
21 | 13 | 57 | 17 | 5.5 | 16 | 90 |
| 3/8G |
R3/8 |
24 |
14 | 62 | 20 | 7.0 | 19 | 140 |
| 1/2G | R1/2 | 29 | 17 | 64 | 24 | 10.0 | 24 | 240 |
| 3/4G | R3/4 | 33 | 18 | 85 | 28 | 16.0 | 30 | 385 |
1033-S
| R | G | A | B | C | Hex |
|---|---|---|---|---|---|
| 1/4 |
1/4 |
28 | 25 | 5.5 | 17 |
| 3/8 |
3/8 |
33 |
30 | 7.0 | 20 |
| 1/2 | 1/2 | 36 | 36 | 10.0 | 27 |
| 3/4 | 3/4 | 40 | 43 | 16.0 | 36 |
| 1 | 1 | 45 | 50 | 21.5 | 41 |
1034-S
| R | G | A | B | C | Hex |
|---|---|---|---|---|---|
|
R1/4 |
G1/4 |
28 | 25 | 5.5 | 17 |
| R3/8 |
G3/8 |
33 |
30 | 7.0 | 20 |
| R1/2 | G1/2 | 36 | 36 | 10.0 | 27 |
| R3/4 | G3/4 | 40 | 43 | 16.0 | 36 |
| 1 | 1 | 45 | 50 | 21.5 | 41 |
1035-S
| R | G | A | B | C | Hex |
|---|---|---|---|---|---|
| 1/4 |
1/4 |
22 | 17 | 5.5 | 19 |
| 3/8 |
3/8 |
27 |
22 | 7.0 | 22 |
| 1/2 | 1/2 | 30 | 27 | 10.0 | 27 |
| 3/4 | 3/4 | 34 | 30 | 16.0 | 36 |
| 1 | 1 | 38 | 34 | 21.5 | 41 |
1036-S
| T1 | T2 | A | B | φｄ | Hex |
|---|---|---|---|---|---|
| R1/4 |
G1/4 |
22 | 17.5 | 5.5 | 19 |
| R3/8 |
G3/8 |
27 |
22 | 7.0 | 22 |
| R1/2 | G1/2 | 30 | 27 | 10.0 | 27 |
| R3/4 | G3/4 | 34 | 30 | 16.0 | 36 |
| R1 |
G1 |
38 | 34 | 21.5 | 41 |
1033R
| 呼称 | R | G | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 02-04 |
1/4 |
1/8 | 21.0 | 13.0 | 22 | 15 | 5.5 | 4.0 | 16 |
| 04-06 |
3/8 |
1/4 | 26.0 | 16.0 | 30 | 20 | 7.0 | 5.5 | 19 |
| 06-08 | 1/2 | 3/8 | 29.5 | 17.5 | 36 | 24 | 10.0 | 7.0 | 24 |
| 08-12 | 3/4 | 1/2 | 34.0 | 20.0 | 42 | 28 | 16.0 | 10.0 | 30 |
|
12-16 |
1 | 3/4 | 40.0 |
22.0 |
50 |
32 | 21.5 | 16.0 | 36 |
1033R
| 呼称 | R | G | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 04-02 |
1/8 |
1/4 | 24.0 | 16.0 | 22 | 14 | 4.0 | 5.5 | 16 |
| 06-04 |
1/4 |
3/8 | 27.5 | 17.5 | 27 | 17 | 5.5 | 7.0 | 19 |
| 08-06 | 3/8 | 1/2 | 32.0 | 20.0 | 32 | 20 | 7.0 | 10.0 | 24 |
| 12-08 | 1/2 | 3/4 | 36 | 22 | 38 | 24 | 10.0 | 16.0 | 30 |
|
16-12 |
3/4 | 1 |
40.5 |
22.5 |
46 |
28 | 16.0 | 21.5 | 36 |
1034R
| 呼称 | R | G | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 02-04 |
1/4 |
1/8 | 19 | 11 | 22 | 15 | 5.5 | 4.0 | 16 |
| 04-06 |
3/8 |
1/4 | 23 | 13 | 30 | 20 | 7.0 | 5.5 | 19 |
| 06-08 | 1/2 | 3/8 | 26 | 14 | 36 | 24 | 10.0 | 7.0 | 24 |
| 08-12 | 3/4 | 1/2 | 32 | 18 | 42 | 28 | 16.0 | 10.0 | 30 |
|
12-16 |
1 | 3/4 | 38 |
20 |
51 |
33 | 21.5 | 16.0 | 36 |
1034R
| 呼称 | R | G | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 04-02 |
1/8 |
1/4 | 21 | 13 | 22 | 14 | 4.0 | 5.5 | 16 |
| 06-04 |
1/4 |
3/8 | 25 | 15 | 27 | 17 | 5.5 | 7.0 | 19 |
| 08-06 | 3/8 | 1/2 | 30 | 18 | 32 | 20 | 7.0 | 10.0 | 24 |
| 12-08 | 1/2 | 3/4 | 34 | 20 | 38 | 24 | 10.0 | 16.0 | 30 |
|
16-12 |
3/4 | 1 |
40 |
22 |
46 |
28 | 16.0 | 21.5 | 36 |
1035R
| 呼称 | R | G | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 02-04 |
1/4 |
1/8 | - | - | - | - | - | - | - |
| 04-06 |
3/8 |
1/4 | 23.0 | 16.0 | 22 | 15 | 7.0 | 5.5 | 19 |
| 06-08 | 1/2 | 3/8 | 26.5 | 17.5 | 27 | 18 | 10.0 | 7.0 | 24 |
| 08-12 | 3/4 | 1/2 | 30.0 | 20.0 | 30 | 20 | 16.0 | 10.0 | 30 |
|
12-16 |
1 | 3/4 | 33.0 |
21.5 |
34 |
22 | 21.5 | 16.0 | 36 |
1035R
| 呼称 | R | G | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 04-02 |
1/8 |
1/4 | 22.0 | 16.0 | 18 | 12 | 4.0 | 5.5 | 17 |
| 06-04 |
1/4 |
3/8 | 24.5 | 17.5 | 20 | 13 | 5.5 | 7.0 | 19 |
| 08-06 | 3/8 | 1/2 | 28.0 | 20.0 | 24 | 15 | 7.0 | 10.0 | 24 |
| 12-08 | 1/2 | 3/4 | 31.5 | 21.5 | 28 | 18 | 10.0 | 16.0 | 30 |
|
16-12 |
3/4 | 1 |
33.5 |
22.5 |
32 |
20 | 16.0 | 21.5 | 36 |
1036R
| 呼称 | R | G | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 02-04 |
1/4 |
1/8 | - | - | - | - | - | - | - |
| 04-06 |
3/8 |
1/4 | 20 | 13 | 22 | 15 | 7.0 | 5.5 | 19 |
| 06-08 | 1/2 | 3/8 | 24 | 15 | 27 | 18 | 10.0 | 7.0 | 24 |
| 08-12 | 3/4 | 1/2 | 28 | 18 | 30 | 20 | 16.0 | 10.0 | 30 |
|
12-16 |
1 | 3/4 | 32 |
20 |
34 |
22 | 21.5 | 16.0 | 36 |
1036R
| 呼称 | R | G | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 04-02 |
1/8 |
1/4 | 19 |
13 |
18 | 12 | 4.0 | 5.5 | 17 |
| 06-04 |
1/4 |
3/8 | 19 | 15 | 20 | 13 | 5.5 | 7.0 | 19 |
| 08-06 | 3/8 | 1/2 | 22 | 18 | 24 | 15 | 7.0 | 10.0 | 24 |
| 12-08 | 1/2 | 3/4 | 26 | 20 | 28 | 18 | 10.0 | 16.0 | 30 |
|
16-12 |
3/4 | 1 |
30 |
22 |
32 |
20 | 16.0 | 21.5 | 36 |
